1, Core functions
Oil water separation (filtration)+pressure regulation+integrated automatic/manual drainage, optimizing the gas path structure.
Efficiently remove moisture, oil mist, and dust from compressed air (optional 5 μ m/0.3 μ m high-precision filter element).
Pressure regulation range of {{0}}.05~0.85MPa, equipped with pressure gauge and locking knob, output pressure fluctuation Less than or equal to ± 0.01MPa.
2, Technical parameters

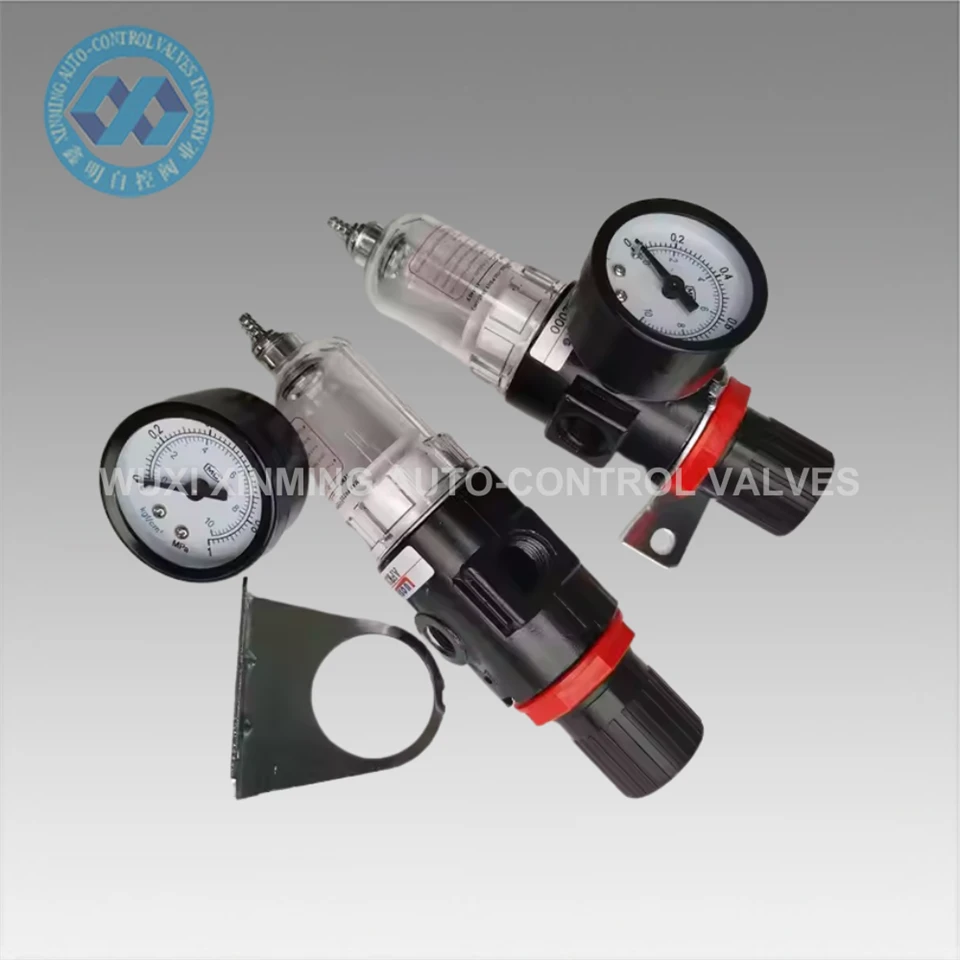

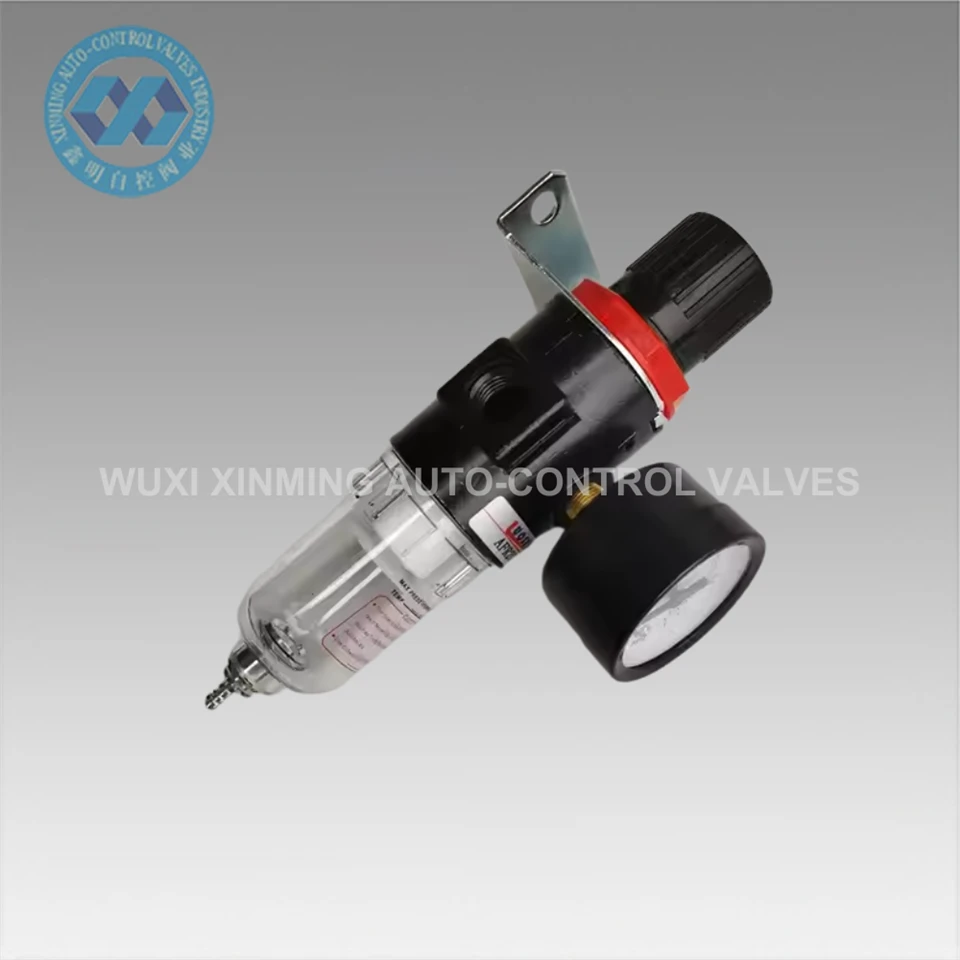

Model AFR2000 (compatible with derivative models such as AFR2000-06/G)
Interface sizes G1/4 ", G3/8", G1/2 "(standard BSP/NPT thread)
Working pressure {{0}}.15~1.0MPa (withstand pressure 1.5MPa)
Filtering accuracy 5 μ m (basic model)/0.3 μ m (high-precision optional)
Flow rate 2000L/min (@ 0.7MPa, G1/2 "interface)
Filter cup capacity 150mL (visible polycarbonate filter cup, pressure resistance 1.2MPa)
Material valve body: anodized aluminum alloy/filter cup: explosion-proof PC/seal: NBR (fluororubber optional)
Environmental temperature -20 degree ~+60 degree (high temperature type can reach+80 degree )
Protection level IP65 (anti oil mist dust)
3, Product Features
Efficient oil-water separation
Adopting cyclone centrifugation and multi-layer filter structure, the oil mist removal rate is Greater than or equal to 99.5% (0.3 μ m level).
Filter element replacement prompt (when the pressure difference is Greater than or equal to 0.1MPa, it needs to be replaced), and the filter cup can be quickly disassembled and cleaned.
4, Application scenarios
Spray production line (requires oil-free, waterless air)
Medical/food packaging machinery (compliant with ISO 8573-1 air quality standard)
5, Selection suggestions
High humidity environment → Optional automatic drain valve (such as AFR2000-AD model).
Corrosive environment → Choose stainless steel valve body+fluororubber sealing version.
Large traffic demand → Upgrade to AFR3000 series (G3/4 "interface, traffic 4000L/min).
